Brand Name : | Dongfeng Cummins |
Model Number : | 6BTA5.9-C180 |
Certification : | ISO/16949, ISO14001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100 Units Per Month |
Delivery Time : | 3-10 Working Days After Received Your Payment |

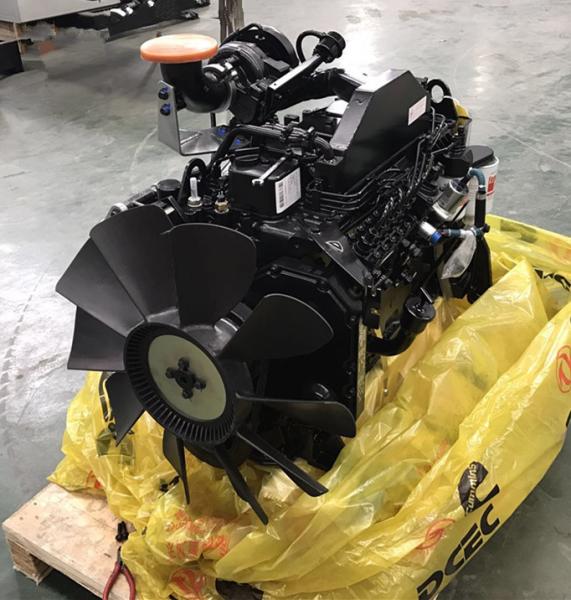

6 Cylinder 4 Stroke Turbocharged Cummins 6BT Diesel Engine
6BTA5.9-C180
Specifications:
General of 6BT5.9-C180 Diesel Engine for Industry | |
Displacement | 5.9L |
Bore&Stroke | 102×120mm |
Cylinders | 6 |
Rated Power | 132kW/2500r/min |
Weight Dry | 443kg |
Aspiration | Turbocharged & Aftercooled |
Pump Type | AD |
Governor | RSV |
Technical Specification of 6BT5.9-C180 Diesel Engine for Industry | |
Instant inertia of rotational part(Without flywheel) | 0.25kg.m2 |
Center Of gravity Distance From Front End Of Cylinder Body | 391mm |
Center Of Gravity Distance Above Crank Centre Line | 140mm |
Peak Torque | 630N.m/1500r/min |
Cummins Diesel Engine Model List:
Cummins Diesel Engine Model List | ||
Model | Rated power/Speed | PeakTorque/Speed |
(kW/rpm) | (N.m/rpm) | |
4BT3.9-C80 | 60/2200 | 330/1500 |
4BT3.9-C100 | 74/2400 | 330/1500 |
4BT3.9-C105 | 77/2800 | 330/1500 |
4BTA3.9-C80 | 82/2200 | 360/1400 |
4BTA3.9-C100 | 74/2200 | 410/1500 |
4BTA3.9-C110 | 82/2200 | 460/1500 |
4BTA3.9-C125 | 93/2200 | 475/1500 |
4BTA3.9-C130 | 97/2500 | 475/1500 |
6BT5.9-C130 | 97/2200 | 560/1500 |
6BT5.9-C150 | 112/2400 | 580/1500 |
6BTA5.9-C150 | 112/2200 | 670/1300 |
6BTA5.9-C170 | 125/2300 | 630/1400 |
6BTA5.9-C180 | 132/2200 | 750/1300 |
6CTA8.3-C195 | 145/1900 | 820/1500 |
6CTA8.3-C215 | 160/2200 | 908/1500 |
6CTA8.3-C230 | 172/2200 | 1003/1500 |
6CTA8.3-C240 | 179/2200 | 1028/1500 |
6CTA8.3-C260 | 194/2200 | 1135/1500 |
6LTAA8.9-C295 | 220/2100 | 1350/1400 |
6LTAA8.9-C300 | 225/2200 | 1268/1000 |
6LTAA8.9-C325 | 239/2200 | 1250/1500 |
6LTAA8.9-C340 | 250/2200 | 1380/1500 |
6LTAA8.9-C360 | 264/2200 | 1480/1500 |
Description:
B Series Diesel Engine:
1. High fuel efficiency.
2. Advanced design and manufacturing make the engine delivers
superior performance and lower cost than competitive engines.
3. Compacted yet durable and dependable engine.
4. Excellent cold start performance with improved 6.6kW starter and
intake air heater.
5. Excellent performance and advantage adopt advanced design to
achieve higher horsepower and lower weight, horsepower per liter
reached 22.4kW/L.
Packaging & Delivery
Packaging Details:
1. Packed in wooden case, 1 unit/wooden case.
2. Packing sieze: 1300*900*1300mm
Delivery Detail:
2-3 days for 1-10 units; 7-10 days for 10-20 units.
Our Service:
1. 100% finished products inspection before shipment. Beside
customer's QC, we can help to do inspection and offer report.
2. We can palletize, make fumigation, supervise over loading, take
loading photos for customers.
3. Offer CO, Form A, Form E, Form F and certificate legalized by
concerned embassy.
4. One year warranty for after-service.
![]() |
