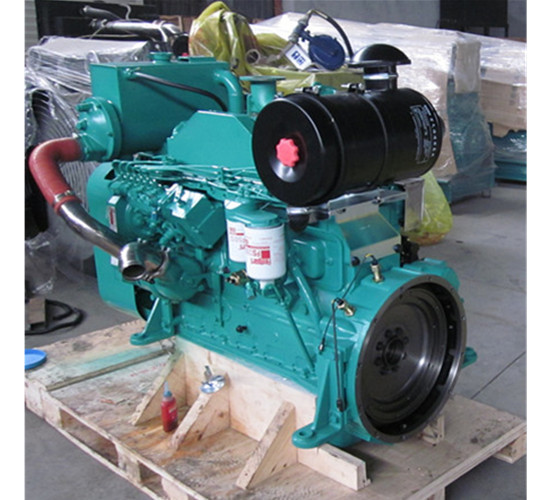

Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set

    Buy cheap Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set from wholesalers

    Buy cheap Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set from wholesalers
    • Buy cheap Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set from wholesalers
    • Buy cheap Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set from wholesalers

    Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set

    Ask Lasest Price
    Brand Name : Dongfeng Cummins
    Model Number : 6BT5.9-G2
    Certification : ISO 14001:2004
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 150 units/ per month
    Delivery Time : 10 working days on receipt of advance payment
    • Product Details
    • Company Profile

    Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set

    Cummins 100 KW 6BT5.9-G2 stationary diesel engine motor for generator set


    Main technical data:

    Cummins engine:6BT5.9-G2
    Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
    24V DC start motor;
    Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
    Equipped with industrial silencer and flexible exhaust hose;
    Equipped with CHINT MCCB circuit breaker;
    Designed to Comply with ISO8528/GB2820;
    Powered by Cummins engine,Controlled by Deepsea panel

    Voltage: 400/230V

    HZ: 50

    Phase: 3

    P.F(COS): 0.8

    Output(KVA) 75


    Specification:

    Engine Model6BT5.9-G2
    Number of Cylinders6 cylinders in line
    Cycle4 stroke
    AspirationTurbocharged and after water cooled
    Bore×Stroke102mm x120mm
    Displacement5.9L
    Compression ratio17.5:1
    Prime Power/Speed86KW / 1500rpm
    Standby Power/Speed92KW / 1500rpm
    Speed GovernorElectrical
    Cooling SystemForced water cooling cycle
    Steady speed droop1%
    Total lubrication system capacity16.4L
    Coolant capacity (engine only)9.1L
    Fuel Consumption at 100% Load208g/kw.h
    Starter MotorDC24V,
    AlternatorDC24V,

    We Promise: "we produce the very best, or we produce nothing at all"

    1. We can quickly arrange the goods and deliver it to you.

    2.Our goods have the competitive prices, long warranty and high quality!

    3.Whatever problems or requirements we will give you the most professional service at our best.

    4.We can provide you engine parts and other kinds of auto parts.

    5. We always adhere to our mutual benefit and long-term cooperation.


    Packaging & Delivery:
    Packaging Details:wood case
    Delivery Detail:10 work days on receipt of yr advance payment
