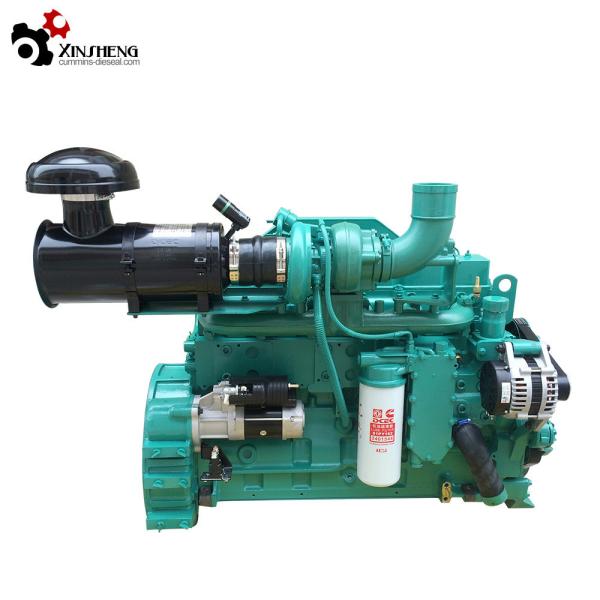

ENGINE DATA
Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Mode:l 6CTA8.3-G1
Engine speed: 1500rpm
Engine powe

-----Standby power: 180kw / 241HP
-----prime power: 163kw / 218HP
-----Continuous power :133kw / 178HP
Air intake way :after-cooled, turbo-charged
Cylinder quantity :6
Bore * Stroke: 114*135 mm
Displacement :8.3L
Fuel system: BYC PB/RSV Mechanical
Governor Regulation: ≤8%
Low idle :700-900 rpm
Piston speed :6.8 m/s
Friction energy output: 17 kw
Emission Certification: MEP STAGE I

Product features:
Protection: Automatic start/stop, load switching and genset alarm
Magnetic sensor signal
Parameters setting via PC and panel
Incorporates 4-channel digital input signal and 3-channel analog input signal
6-channel output signal (4-channel customized output, CAN 6-channel customized output.)
Monitoring of 3-phase generator voltage and mains voltage
Remote loading/unloading
Advanced measurement capabilities
Test button
Switch between mains and genset power
Reasonable structure and button layout
Multiple engine parameters can be tested simultaneously
Module can be configured according to customer demand
IP65 protection (soundproof)

Cummins Enige Model List For Genset:

Our Warehouse Photo:


Packaging & Delivery:
Packaging Detail:
Packaged By Exporting plywood case,woooden.

Delivery Detail:
Shipped in 12 working days after yr advance payment

We can provide ORIGINAL CUMMINS engines used for Industry, Bus, Marine, Generator Set and water pump. More details, please contact us via email and call. Thanks !
