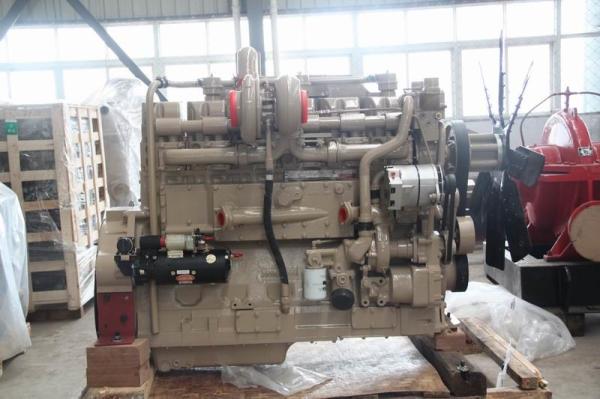

38 L 900HP Small 12 Cylinder Diesel Engine , Main Propulsion Diesel
Engine Motor
General Data:
| Diesel engine model | KTA38-M0 |
| Manufacture | Chongqing Cummins |
| Rated power | 671 KW | Engine Position | Inboard |
| Rotated speed | 1800 rpm | Bore * stroke | 159*159 mm |
| Cylinder | 12 | Arrangement | V type |
| Configuration | Cast iron, 4 stroke | Displacement | 38 L |
| Oil pan capacity | 138 L | Engine Coolant capacity | 124 L |
| Oil consumption | 1.2 g/kw h | Fuel consumption | 209 g/kw h |
| Compression ratio | 14.5:1 | Max coolant temperature | 104 ℃ |
| Max back pressure | 10 KPa | Intake Resistance | 2.49 kPa |
| Net. Weight | 3750 Kg | Intake type | Turbocharged inter cooling |
| Cooling type | Compulsive water cooling | Mode of speed regulation | Electronic regulation |
| Starting voltage | 24 volt, Electric started | Overall dimension (L*W*H) | 2347×1412×1907 mm*mm*mm |
KTA38 Diesel Engines Parameter:
| Engine Model | KT38-M800 | KTA38-M0 | KTA38-M1 | KT38-M | KTA38-M2 |
| Type | V-Type, 12 Cylinders, 4 stroke, Direct Injection | V-Type, 12 Cylinders, 4 stroke, Direct Injection | V-Type, 12 Cylinders, 4 stroke, Direct Injection | V-Type, 12 Cylinders, 4 stroke, Direct Injection | V-Type, 12 Cylinders, 4 stroke, Direct Injection |
| Rated Power(KW) | 596 | 671 | 746 | 582 | 895 |
| Speed(rpm) | 1800 | 1800 | 1800 | 1800 | 1800 |
| Displacement | 38L | 38L | 38L | 38L | 38L |
| Bore * Stroke | 159 * 159 mm | 159 * 159 mm | 159 * 159 mm | 159 * 159 mm | 159 * 159 mm |
| Cooling Type | Compulsive Water-Cooling | Compulsive Water-Cooling | Compulsive Water-Cooling | Compulsive Water-Cooling | Compulsive Water-Cooling |
| Fuel Consumption (KW.h) | 190g | 190g | 190g | 190g | 190g |
| Air Intake Type | Turbocharged Inter-cooling | Turbocharged Inter-cooling | Turbocharged Inter-cooling | Turbocharged Inter-cooling | Turbocharged Inter-cooling |
| Net Weight | 3750kg | 3750kg | 3750kg | 3750kg | 3750kg |
| Dimension | 2260*1340*1660 | 2260*1340*1660 | 2260*1340*1660 | 2260*1340*1660 | 2260*1340*1660 |
Accessories Included: Include Elbow,Muffler,Taper joint,Bellows,Toolbox,Fan,Speed
controller.
Radiator,Meter boxes,Sea water pump,Heat exchanger need another
paid whenever necessary.
KTA38 Diesel Engines Superiority:
1. American technology.
2. Price less 20%~30% than others brand.
3. CE & ISO9001:2008.
4. PT Pump,Turbocharged.
5. Simple and convenient maintennance.
6. Small Volume.
7. High Power.
8. Fuel Save.
9. Low Noise.
10. Light weight.
KTA38 Diesel Engines Standard configuration:
1. Elbow
2. Muffler
3. Taper joint
4. Bellows
5. Toolbox
6. EFC Governer
7. Sea Water Pump
KTA38 Diesel Engines Performance Characteristics:
1. Advanced fuel system enable direct injection so as to
efficiently lower fuel consumption while augmenting power.
2. PT Fuel injection system offers you options : may use mechanical
system or even better use CENTRY speedregulation system by electric
controlling.
3. Swaged forging crankshaft and connection bar make their life
longer.
4. Four valves, supercharging, and air intercooling elevate
discharge standard and increase power.
5. The compact design of four stroke and in-line has the size
smaller and weight lighter.
6. Design of one valve out fitting with one cylinder lower the
temperature of cylinder head efficiently, increase servicelife, and
facilitate maintenance.
7. Hierarchical variable timing system (STC) allows engine
toaccelerate with load smoothly, to control fuel injection
moreaccurately, and to elevate discharge standard.
K38 and K50 Diesel Engine For Generator Performance
Characteristics:
1. Cylinder Block
High quality alloy cast iron for the rigidity performance and good
stability.
Wet and replaceable cylinder liners for better heat rejection
performance.
2. Head and Valve
4 valves per cylinder, optimize the mixed level which lead to an
excellent fuel consumption rate and emission performance. High
quality alloy cast iron, one cylinder one head, dual camshaft and
special designed outline for better reliability and durability.
3. Crankshaft and Rod
Robust and fully balanced crankshaft design for a more steadily
rotation and higher strength.
Steel piston crown with oil gallery and aluminum skirts for better
durability and low oil consumption.
4. Fuel system
PT fuel injection system offers you options: may use mechanical
system or even better use CENTRY SPEED-REGULATION system by
electric controlling. Hierarchical variable timing system(STC),
which leads to an excellent fuel consumption rate and emission
performance. Check valve in fuel tube improve reliability.
5. Lubrication system
Great flux gear pump, lube oil filter and by-pass oil filter can
separate impurity above 1 0um effectively. Keep lubrication system
good state and make the engine more reliability.
6. Cooling system
Gear water pump and great flux channel design provide effective
cooling. Spin-in water filter make the coolant clean and keep it in
normal acidity.
7. Exhaust system
Advanced turbocharger and water-air after cooler technology, pluse
exhaust manifold reduce exhaust temperature, provide excellence
fuel consumption and emission performance.
8. Electrical system
24V cranking motor and 35A Battery charging system.
Our Service:
1. 100% finished products inspection before shipment. Beside
customer’s QC, we can help to do inspection and offer report.
2. We can palletize, make fumigation, supervise over loading,take
loading photos for you.
3. Offer CO, Form A, Form E, Form F and certificate legalized by
concerned embassy
4. One Year warranty for After-service.
